Post-processing N-body snapshots with BEoRN¶
[20]:
import numpy as np
[21]:
# Add the local version of the module to the path
import sys
sys.path.append('../src/')
[22]:
from beorn import run
from beorn.astro import f_star_Halo
from beorn.plotting import *
from beorn.parameters import Parameters
Choose a source model.¶
For more details on parameter definitions, see arXiv/2305.15466.
[23]:
parameters = Parameters()
# # Halo Mass bins
parameters.simulation.halo_mass_bin_min = 1e7
parameters.simulation.halo_mass_bin_max = 1e15
parameters.simulation.halo_mass_bin_n = 40 # nbr of halo mass bin
# name your simulation
parameters.simulation.model_name = 'test'
# Nbr of cores to use
parameters.simulation.cores = 1
# simulation redshifts
parameters.solver.Nz = [7.72]
# cosmo
parameters.cosmology.Om = 0.31
parameters.cosmology.Ob = 0.045
parameters.cosmology.Ol = 0.69
parameters.cosmology.h = 0.68
# Source parameters
# lyman-alpha
parameters.source.n_lyman_alpha_photons = 9690 # 1500
parameters.source.alS_lyal = 0.0
# ion
parameters.source.Nion = 3000
# xray
parameters.source.E_min_xray = 500
parameters.source.E_max_xray = 10000
parameters.source.E_min_sed_xray = 200
parameters.source.E_max_sed_xray = 10000
parameters.source.alS_xray = 1.5
parameters.source.xray_normalisation = 3.4e40
# fesc
parameters.source.f0_esc = 0.2
parameters.source.pl_esc = 0.5
# fstar
parameters.source.f_st = 0.14
parameters.source.g1 = 0.49
parameters.source.g2 = -0.61
parameters.source.g3 = 4
parameters.source.g4 = -4
parameters.source.Mp = 1.6e11 * parameters.cosmology.h
parameters.source.Mt = 1e9
# Minimum star forming halo
parameters.source.halo_mass_min = 1e8
# Mass Accretion Rate model (EXP or EPS)
parameters.source.mass_accretion_model = 'EPS'
Compute profiles (ly-al, xHII, Tk)¶
[24]:
# Step 1 : profiles
run.compute_profiles(parameters)
Computing Temperature (Tk), Lyman-α and ionisation fraction (xHII) profiles...
param.solver.Nz is given as a list.
param.solver.fXh is set to constant. We will assume f_X,h = 2e-4**0.225
... Profiles stored in dir ./profiles.
It took 00:01:22 to compute the profiles.
Plot the profiles¶
[25]:
profiles = beorn.load_f('./profiles/test.pkl')
plt.loglog(profiles.M_Bin, f_star_Halo(parameters,profiles.M_Bin))
plt.ylim(0.002,0.3)
plt.ylabel(r'$f_*$ = $\dot{M}_{*}/\dot{M}_{\mathrm{h}} $', fontsize=15)
plt.xlabel('M$_*$ $[M_{\odot}]$', fontsize=15)
ind_M = 20
plot_1D_profiles(parameters, profiles, ind_M, z_liste=[13,10,8])
<>:5: SyntaxWarning: invalid escape sequence '\o'
<>:5: SyntaxWarning: invalid escape sequence '\o'
/tmp/ipykernel_47215/2170824821.py:5: SyntaxWarning: invalid escape sequence '\o'
plt.xlabel('M$_*$ $[M_{\odot}]$', fontsize=15)
---------------------------------------------------------------------------
NameError Traceback (most recent call last)
Cell In[25], line 1
----> 1 profiles = beorn.load_f('./profiles/test.pkl')
2 plt.loglog(profiles.M_Bin, f_star_Halo(parameters,profiles.M_Bin))
3 plt.ylim(0.002,0.3)
NameError: name 'beorn' is not defined
Paint profiles on 3D grids¶
[ ]:
# Box size and Number of pixels
Lbox = 100 # cMpc/h
Ncell = 128
parameters.simulation.Lbox = Lbox
parameters.simulation.Ncell = Ncell
parameters.simulation.halo_catalogs = './halo_catalog/pkdgrav_halos_z' ## path to dir with halo catalogs + filename
parameters.simulation.dens_field = './density_field/grid_' + str(Ncell) + '_B100_CDM.z' # None
parameters.simulation.dens_field_type = 'pkdgrav'
parameters.simulation.store_grids = ['Tk','bubbles','lyal' ,'dTb']
# define k bins for PS measurement
kmin = 1 / Lbox
kmax = Ncell / Lbox
kbin = int(6 * np.log10(kmax / kmin))
parameters.simulation.kmin = kmin
parameters.simulation.kmax = kmax
parameters.simulation.kbin = kbin
[ ]:
# Step 2 : Paint Boxes and read and write GS and PS in ./physics/
run.paint_boxes(parameters, RSD=False, ion=True, temp=True, dTb=True, lyal=True, check_exists = False, cross_corr=True)
# Step 3 : gather the GS_PS files at different redshifts and create a single GS_PS.pkl file.
run.gather_GS_PS_files(parameters,remove = False)
# Option : Quick calculation of the global quantities from halo catalogs and profiles (similar to eq 11 in 2302.06626)
GS = beorn.compute_glob_qty(parameters)
beorn.save_f(file='./physics/GS_approx_' + parameters.simulation.model_name + '.pkl',obj = GS)
Painting profiles on a grid with 128 pixels per dim. Box size is 100 cMpc/h.
param.solver.Nz is given as a list.
Core nbr 0 is taking care of z = 7.72
----- Painting 3D map for z = 7.72 -------
reading pkdgrav density field....
There are 66390 halos at z= 7.715124
Looping over halo mass bins and painting profiles on 3D grid ....
Quick calculation from the profiles predicts xHII = 0.2363
17220 halos in mass bin 16 . It took 00:00:02 to paint the profiles.
24672 halos in mass bin 17 . It took 00:00:03 to paint the profiles.
12567 halos in mass bin 18 . It took 00:00:05 to paint the profiles.
6295 halos in mass bin 19 . It took 00:00:07 to paint the profiles.
3075 halos in mass bin 20 . It took 00:00:08 to paint the profiles.
1426 halos in mass bin 21 . It took 00:00:10 to paint the profiles.
662 halos in mass bin 22 . It took 00:00:11 to paint the profiles.
292 halos in mass bin 23 . It took 00:00:13 to paint the profiles.
98 halos in mass bin 24 . It took 00:00:15 to paint the profiles.
56 halos in mass bin 25 . It took 00:00:16 to paint the profiles.
15 halos in mass bin 26 . It took 00:00:18 to paint the profiles.
9 halos in mass bin 27 . It took 00:00:19 to paint the profiles.
3 halos in mass bin 28 . It took 00:00:21 to paint the profiles.
.... Done painting profiles.
Dealing with the overlap of ionised bubbles....
initial sum of ionized fraction : 501329.19
Universe not fully ionized : xHII is 0.2391
3838 connected regions.
there are 2349 connected regions with less than 10.0 pixels. They contain a fraction 0.0215 of the total ionisation fraction.
final xion sum: 501329.19
.... Done. It took: 00:00:19 to redistribute excess photons from the overlapping regions.
--- Including Salpha fluctuations in dTb ---
--- Including xcoll fluctuations in dTb ---
Computing Power Spectra with all cross correlations.
----- Snapshot at z = 7.72 is done -------
Finished painting the maps. They are stored in ./grid_output. It took in total: 00:00:45 to paint the grids.
param.solver.Nz is given as a list.
Computing global quantities (sfrd, Tk, xHII, dTb, xal, xcoll) from 1D profiles and halo catalogs....
param.solver.Nz is given as a list.
....done. Returns a dictionnary.
Plot 3D maps¶
[ ]:
from beorn.plotting import plot_2d_map
slice_nbr = 64
dTb_map = beorn.load_grid(parameters, z=7.72, type='dTb')
T_map = beorn.load_grid(parameters, z=7.72, type='Tk')
xHII_map = beorn.load_grid(parameters, z=7.72, type='bubbles')

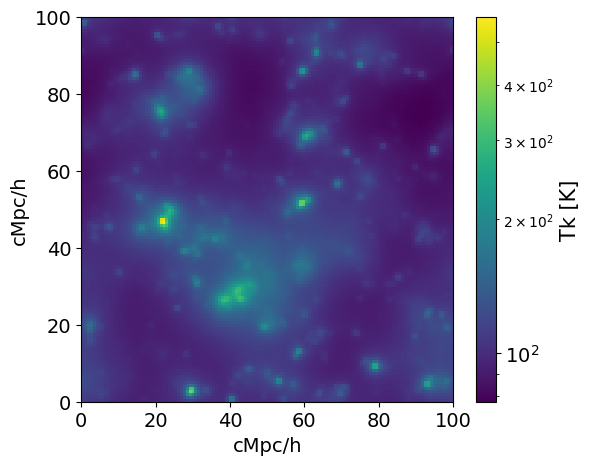

plot_2d_map(T_map, Lbox=Lbox, slice_nbr=slice_nbr, qty='Tk [K]',scale='log')

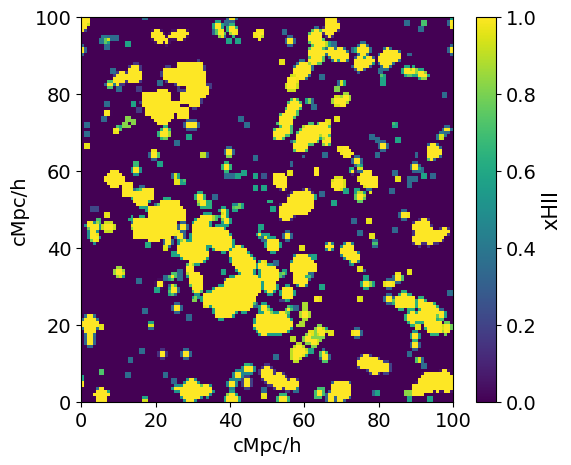

plot_2d_map(xHII_map, Lbox=Lbox, slice_nbr=slice_nbr, qty='xHII')

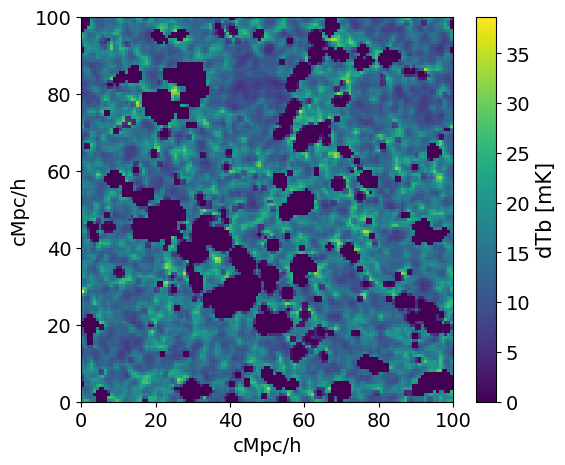

plot_2d_map(dTb_map, Lbox=Lbox, slice_nbr=slice_nbr, qty='dTb [mK]')
Ncell is 128
Ncell is 128
Ncell is 128
[ ]:
z = 7.72
PS = beorn.load_f('./physics/GS_PS_128_test.pkl')

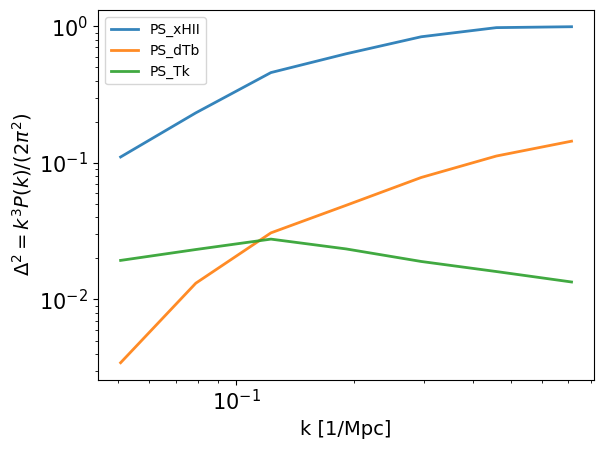

plot_PS_Beorn(z, PS, color='C0', ax=plt, label='PS_xHII', qty='xHII', ls='-', alpha=0.9, lw=2)
plot_PS_Beorn(z, PS, color='C1', ax=plt, label='PS_dTb', qty='dTb', ls='-', alpha=0.9, lw=2)
plot_PS_Beorn(z, PS, color='C2', ax=plt, label='PS_Tk', qty='T', ls='-', alpha=0.9, lw=2)
--BEORN -- plotting power spectrum of xHII at redshift 7.715
--BEORN -- plotting power spectrum of dTb at redshift 7.715
--BEORN -- plotting power spectrum of T at redshift 7.715
[ ]:
